Reliable power protection for small business and home office applicationsThe Agilon VX line-interactive UPS designed with microprocessor control offers reliable and cost-effective power protection for PCs, monitor, POS, and other sensitive electronics used in home offices and small businesses. The integrated Automatic Voltage Regulation (AVR) ensures all electronics are receiving stable power while providing higher availability. The Agilon VX series’ LCD display, auto-shutdown software and other superior features make these units perfect for your data protection.

Application:　PC　Monitor　POS　ADSL　Home

Reliability

The integrated AVR (Automatic Voltage Regulation) stabilizes the output voltage for better power quality.

Excellent microprocessor control enables accurate detection of power frequency for higher reliability.

Wide input voltage range allows the UPS to work in harsh electrical environments and reduces battery discharging time.

Batteries are automatically recharged even when the UPS is in off mode and the UPS can start without mains (Cold-Start).

UPS is able to restart automatically while utility power is recovering.

Surge protection defends your critical load against damage.

Convenience

Supplied with IEC output power cable for convenient connection to your load.

Several standard IEC 320 output sockets simplify the connectivity to computer and IT peripherals.

Compact size saves more space for critical equipment.

Manageability

Standard USB communication port enhances monitoring and manageability.

Touch screen LCD for a clear display of UPS information.

Advanced UPS management software provides remote shutdown and control.

Specifications
Battery	12V/7 Ah x2
Communication/Management	1 USB port
Frequency	50/60 Hz ± 1 Hz
Input Connection	IEC320 C14
Input Voltage	170-280 VAC
Misc.	Include 2x IEC C13 to AU 10A short leads (Output )
Output Receptacles	IEC 320 C13 x4
Output Voltage	230VAC ± 10% (Battery mode)
Power Rating/Capacity	1500VA/ 900W
Series	VX
Typical Runtime	45 minutes approx. for 1 PC (may vary subject to actual load)
Warranty	2 Years Advance Replacement (Include Battery)

Specifications

Battery

12V/7 Ah x2

Communication/Management

1 USB port

Frequency

50/60 Hz ± 1 Hz

Input Connection

IEC320 C14

Input Voltage

170-280 VAC

Misc.

Include 2x IEC C13 to AU 10A short leads (Output )

Output Receptacles

IEC 320 C13 x4

Output Voltage

230VAC ± 10% (Battery mode)

Power Rating/Capacity

1500VA/ 900W

Series

Typical Runtime

45 minutes approx. for 1 PC (may vary subject to actual load)

Warranty

2 Years Advance Replacement (Include Battery)

Join iBest Today

Subscribe to our newsletter

UPS

Filters

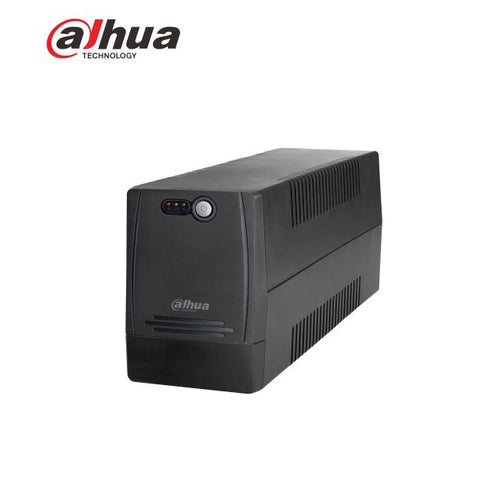

Dahua PFM350-360 600VA/360W Line-interactive UPS

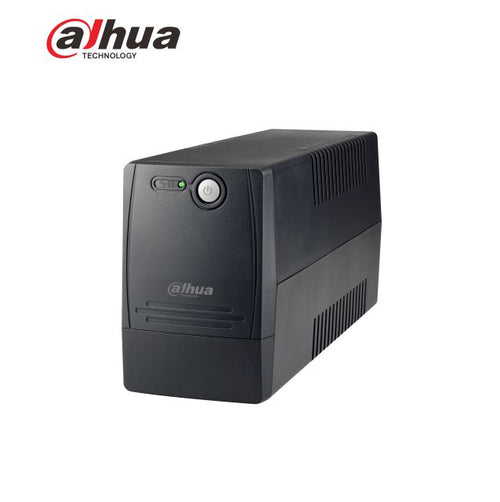

Dahua PFM350-900 1500VA/900W Line-interactive UPS
